Die-casting Aluminium IP65 100W Outdoor LED Module Street Lights

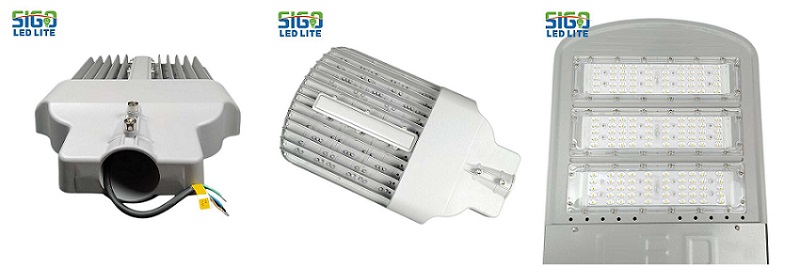

Features of high efficiency led module street light 100w
-Lamp Body: Die-casting aluminum body for anti-rust & anti-corrosion & heat dissipate better. 50,000hrs long lifespan and lower maintenance costs.

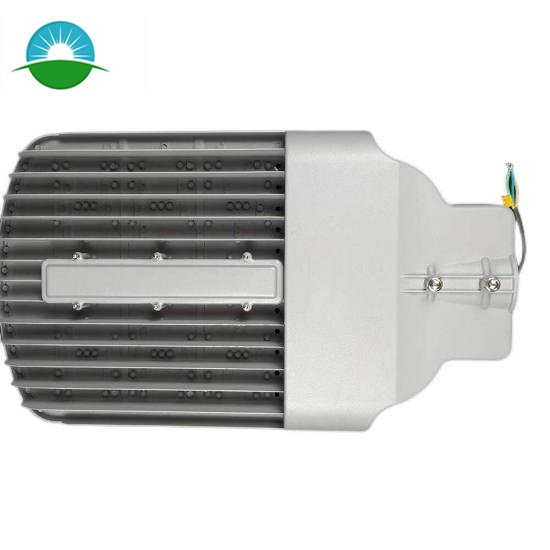

-Heat Sink: Aluminum heat sink. On the back of LED modular street lights, the thickened strip design, increasing the air convection to achieving the best heat dissipation effect.

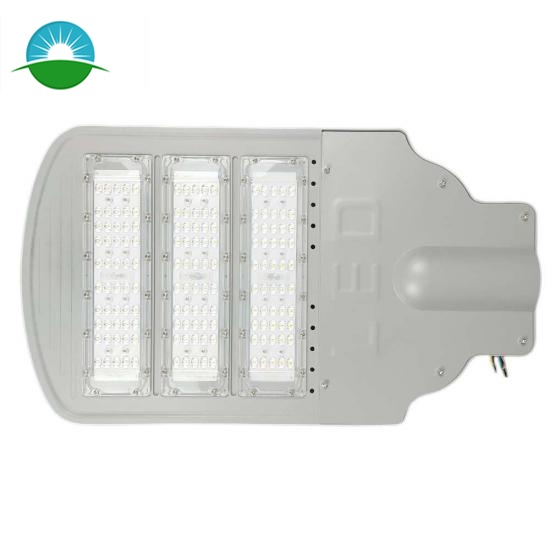

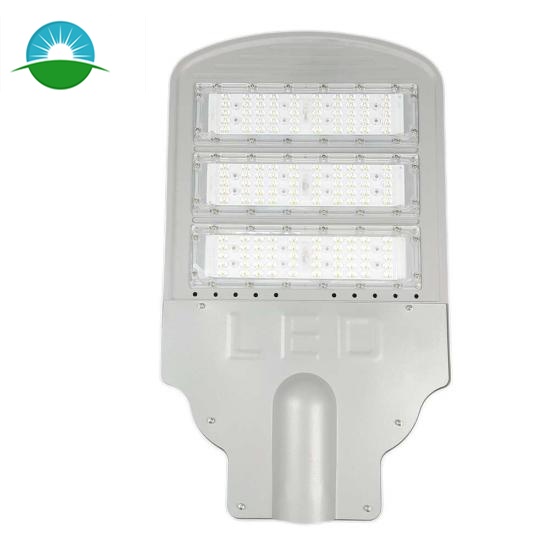

-Lamp Beads: SMD 3030 lamp beads, high brightness, rainproof and anti-static ability, no radiation and no strobe.
-IP65 Waterproof: Heat resistant and aging resistant silicone ring seals are used at the joints of each part of the
IP65 modular street lamp body, effectively protect the power supply, suitable for outdoor wet locations.

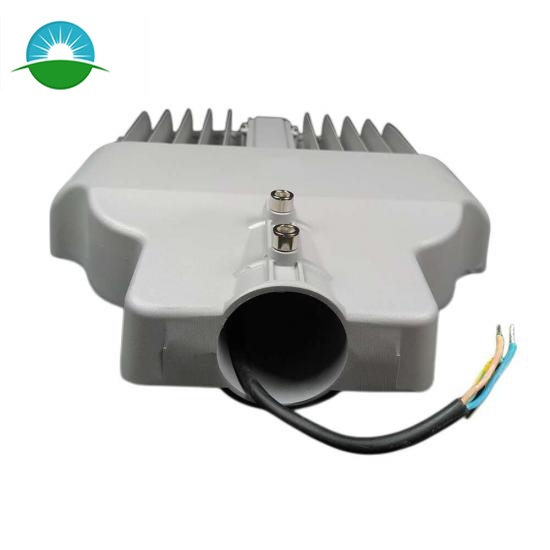

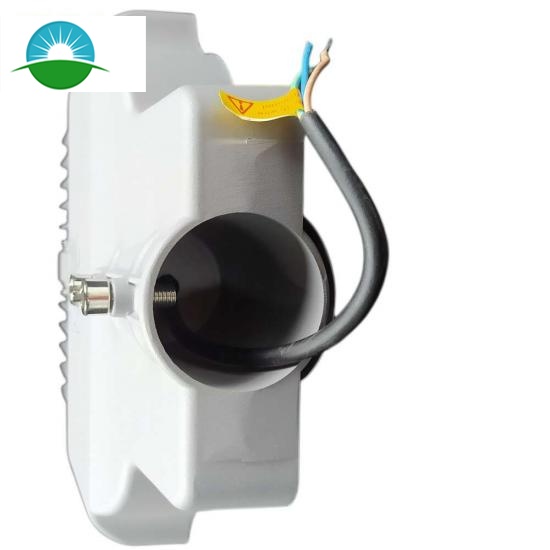

-φ60mm Installation Diameter: Easy and fast installation and removal
-Installation Method: Pole-mounted, wall-mounted








Specification of IP65 LED modular street lights



						Specification


						Input Volt.:

						100-277V 50/60HZ

						Rated Power:

						100W

						CCT

						6000K

						Power Factor

						RF﹥0.95

						LED Chip

						SMD 3030

						Lamp Body Material

						Aluminum

						IP grade

						IP65

						Operation Condition

						-30℃~+80℃

						Warranty

						2 Year

						Size of Lamp

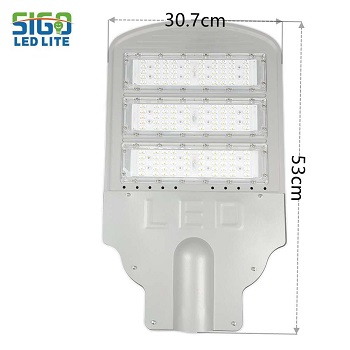

						530*307*60MM (±5mm)

						Installation Diameter

						φ60mm

						Housing Material

						Die-casting Aluminium

						lifespan

						﹥50000 Hours

						Item Weight

						N.W.:2.92KGS (±0.1kg)

						G.W.:3.38KGS (±0.1kg)

						Package

						One piece in one carton

						540*330*115MM (±5mm)

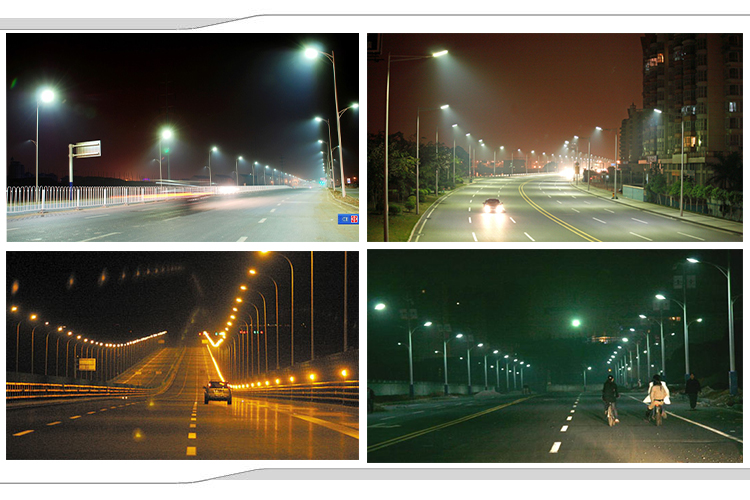

Application of high power modules for street and outdoor lighting
-Tunnel, underpass lights
-Gymnasium, stadium lighting
-Gas station, garage lighting
-Park, garden lights
-Workshop, factory lighting
-Warehouses, storage lighting
-Courtyard, square lighting
-Road, highway lighting
-Station, dock lighting, etc.






FAQ:
1.Are you a manufacturer?
-Yes, we have been producing and exporting lighting for 12 years
2.Can I have a sample order of led street lights?
-Yes, we welcome sample orders to test and check the quality, if needed. Mixed samples are acceptable.
3.Can I put my own logo on the lamp?
-Yes, kindly inform us and confirm the design before production. By the way, the logo can be on the label or laser printed. We can also do OEM
4.I have a street/high way, what's your suggestion?
-Please give me the below information:
-A: the wide of the street.
-B: the arrangement and the height of light pole.
-C: the requirement of illumination.
