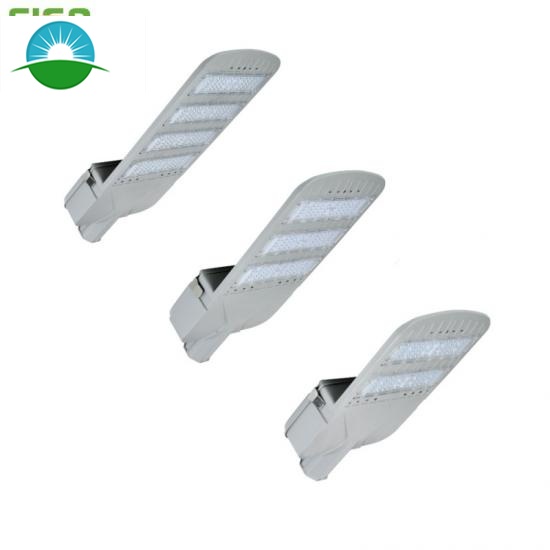

Our semi integrated solar street light are with EL-PASS Mono-crystalline solar panel,180-200lm/W high efficacy 3030 SMD LEDs,Die-casting Housing with PC professional optical LENS.Designed for Municipal project with high quality
Features& Benefits:

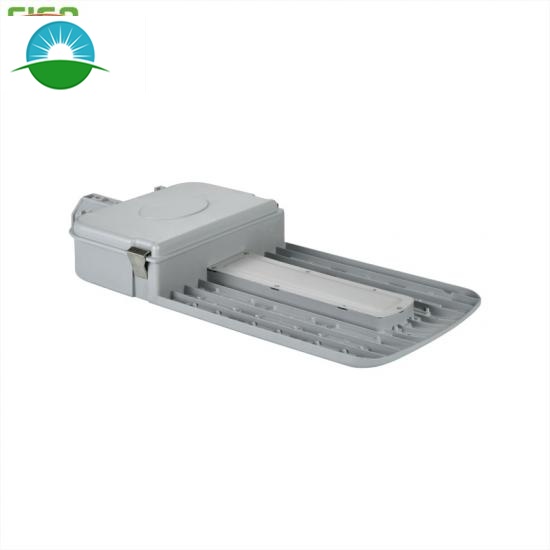

l Made of high-quality die-casting aluminium, fusion of a variety of processes, the lamp body does not rust, corrosion resistance, fearless of sun and rain, durable.
l Grade A Solar Panel-EL Passed Mono crystalline silicon panel, luminous efficiency conversion rate ≥21%, efficient low-light charging response, trickle charging even on cloudy and rainy days.
l Lithium battery built-in cast aluminium light shell internal, one-piece design, no memory, small size, easy to install and more effective protection of the battery at the right temperature, prolonging the life of the battery, reducing the maintenance costs of frequent replacement of the battery later.
|
Specification |
|
|
Model No.: |
GSHM150W |
|
Marked Power: |
200 Watts |
|
Lumens: |
180-200lm/W |
|
LED Type: |
160pcs EMC 3030 SMD |
|
Solar Panel(Wp) |
Mono-crystalline Silicon |
|
Color Temperature |
3000-6500 K |
|
CRI: |
>80 |
|
Lithium Battery(Ah) |
Grade A LiFePO4 |
|
|
3.2V 200AH |
|
Smart Controller |
Auto Day/ Night Recognition |
|
Light Distribution |
Bat-wing Street Light Distribution |
|
Beam Angle ( °) |
C0-180 135°/T90-270 70° |
|
Operating Condition |
-10°C ~ 40°C, 10-95% |
|
Product Size(mm) |
600*275*115mm |
|
Protection Grade |
IP66 |
Application-
Designed for solar sidewalk lighting,Private Road lights street lights in the city and highway
